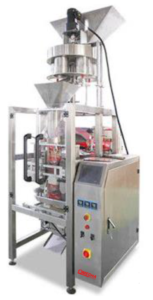

Vertical Form Fill Sealing Machine For Granule

Vertical Form Fill Sealing Machine For Granule

Applications:
  • All kind of fine granules like, food grains, pulses, seeds, salt , chemicals, ,
Features:
  • PLC control with Touch screen / HMI
  • Unique design with servo drives for film feed and accurate filling
  • Self centering paper roll holding with pneumatic collect
  • Alarm for No film
  • Easy changeover for various size of
  • Easy for cleaning
  • Interlocking and password protection
  • Inbuilt
  • Recipe management facility for various density products with separate target setting based on product characteristics.
Optional:
  • Batch coding machine (ink jet or hot foil )
  • Nitrogen / any gas flushing device
  • Out take conveyor
  • Check weigher and metal detector
  • Screw type Product loading conveyor with hopper
  • The Hole puncher
  • Paper cutting and web tracking adjustment in screen
  • Gusset forming
  • Ionizer to remove static charge

VFFS

FOR GRANULAR

WEIGH METRIC / LINEAR

FILLING SYSTEM

TELESCOPIC – VOLUME

WEIGH HEAD

HOPPER CAPACITY

25 LTRS

20 LTRS

FILLING RANGE

UP TO 1 KG

UP TO 1 KG

FILLING ACCURACY

+/- 1%

+/- 1%

FILLING SPEED

20 TO 100 BPM

6 TO 10 BAGS / HEAD /MIN

POWER REQUIRED – 3 PH 440V

8 KW

6 KW

DIMENSION- MM L X B X H

2100 X 1300 X 3000

2100 X 1300 X 3000
