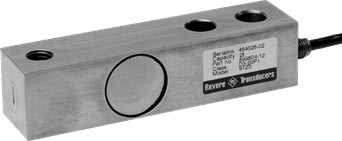

Single Ended Load Cell
- Double bending beam load cell
- Fully stainless steel
- 3000 divisions O.I.M.L. R60 class C
- Hermetically sealed, fully welded
- Protected IP 68 (DIN 40050)
- Only version Mod 300i
- Available in ATEX EX version (optional)
Technical specifications
| Nominal capacities | 300-500-750-1000-1500-2000-3000-5000-7500-10000 | Kg |
|---|---|---|
| Accuracy class | 3000 | n. OIML |
| Minimum dead load | 0 | %Ln |
| Service load | 150 | %Ln |
| Safe load limit | 200 | %Ln |
| Total error | < ± 0.017 | %Sn |
| Repeatability error | < ± 0.015 | %Sn |
| Temperature effect on zero | < ± 0.01 | %Sn/5K |
| Temperature effect on sensitivity | < ± 0.006 | %Sn/5K |
| Creep error (30 minutes) | < ± 0.016 | %Sn/5K |
| Temperature compensation | -10 až +40 | ° C |
| Temperature limits | -20 až +50 | ° C |
| Nominal sensitivity (Sn) | 2 ± 10% | mV/V |
| Nominal input voltage | 10 | V |
| Max. input voltage | 15 | V |
| Input impedance | 400 ± 20 | Ohm |
| Output impedance | 350 ± 3 | Ohm |
| No load output | < ± 2 | %Sn |
| Insulation resistance | > 5000 | MOhm |
| Max.deflection (at Ln) | 0.2 – 0.4 | Mm |

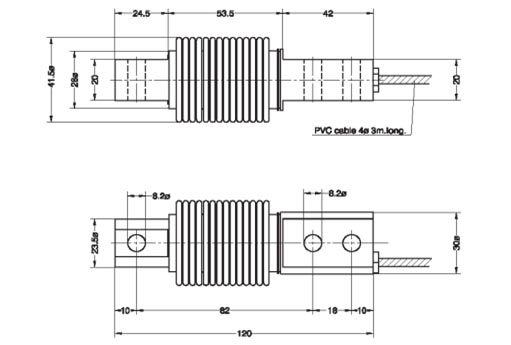

Dimensions in mm.
